Strip end Joiner/Shear and welder

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
1) High strength: High designed strength, high strength material is adopted to process heat treatment, which will enhance material strength and eliminate internal stress.

2) High precision: CNC machine tool precision machining to ensure machining accuracy and assembly accuracy, while reducing equipment loss.

3) High automation: Equipment main movement driven by hydraulic motor and controlled by PLC, which could save labor and labor intensity.

4) High speed: Driven by high power motor, frequency variable speed control system, to ensure every single machine operation synchronize.
Availability:
Inquire

1. STRIPS METERIAL

● Cold and hot rolled carbon steel

● Low and high resistance carbon steel

● Galvanized, galvanized aluminium, aluminized steel

● Stainless steel

● Aluminium

● Copper

2. APPLICATION


ERW Carbon Steel Tube Mills

 Strip end Joiner
Roll Forming Mills Shear and welder

3. TYPE

Type:Semi-automatic type/Automatic type

Note: It can be customized according to the requirements.

4. FEATURESE

● High strength.

● High speed.

● Quick change product size.

● Excellent quality control technology.

● High automation.

● International general spare parts.

5. MODELS


  Model

   Strip Width(mm)

   Strip Thickness(mm)

  SW120

          25~120

                0.3~2

  SW200

          35~200

                0.6~3

  SW400

          65~400

                1~4

  SW400

          150~400

                1.5~5

  SW600

          200~600

                2~6

  SW800

          300~800

                3~8

  SW1000

          400~1000

                4~10

  SW1200

          600~1200

                5~12

  SW1600

          800~1600

                6~16

  SW2200

         1000~2200

                8~20


Note: the above models are for reference, can be customized according to requirements.

5. OUR SERVICES

● Provide integral solutions.

● Provide customized solutions.

● Provide equipment modification and upgrade services.

● Provide turnkey projects.

● Provide free technical consultation.

● Provide performance testing before shipment.

● Provide remote fast fault diagnosis and resolution.

● Provide fast supply spare parts.

Strip end Joiner Strip end Joiner Strip end Joiner
Strip end Joiner Strip end Joiner Strip end Joiner
Shear and welder Shear and welder Shear and welder



Previous:
Next:
Strip end Joiner/Shear and welder Strip end Joiner Manufacturers Shear and welder Suppliers

Hot Products

HF Welder/High Frequency Induction Welder
HF Welder/High Frequency Induction Welder
1) High strength: High designed strength, high strength material is adopted to process heat treatment, which will enhance material strength and eliminate internal stress.

2) High precision: CNC machine tool precision machining to ensure machining accuracy and assembly accuracy, while reducing equipment loss.

3) High automation: Equipment main movement driven by hydraulic motor and controlled by PLC, which could save labor and labor intensity.

4) High speed: Driven by high power motor, frequency variable speed control system, to ensure every single machine operation synchronize.
0
0

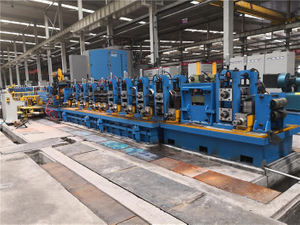

ERW Carbon Steel Tube Mills
